Wave Synthesiser

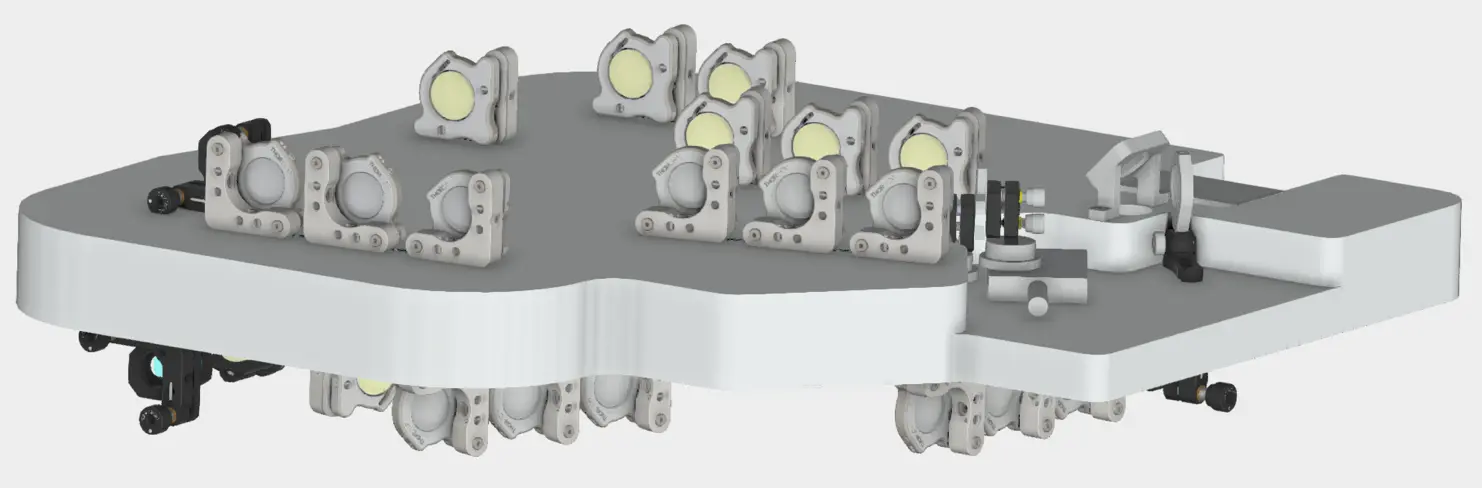

In 2015 I work as an assistant student at the Max Planck Institute for Quantum Optics, in Munich. My work was to design an efficient layout for a phase matching synthesiser.

To produce an ultra short pulse, a continuous frequency spectrum was achieved, and to match the out coming wave phase, the spectrum was divided into two beams that would go through different phase delay channels.

At the end both channels would be combined to achieve the final pulse, combined both in space and time. This work was done under the supervision of Dr. Martin Shultze.

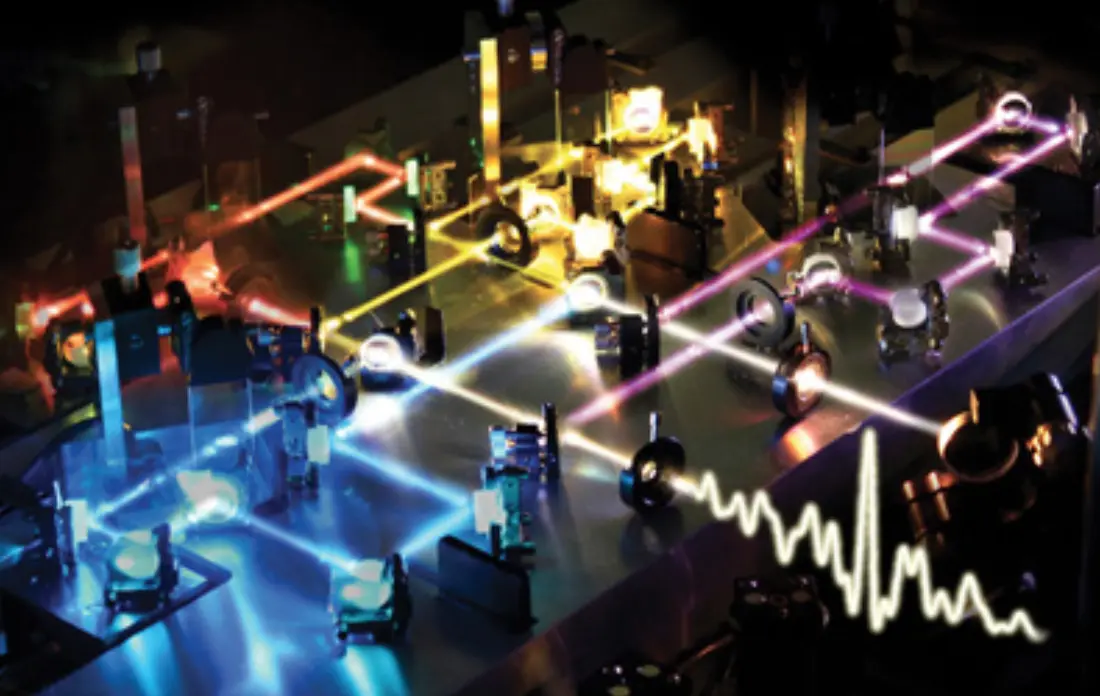

Overall results for an ultra short laser pulse.
